TelepoleTD

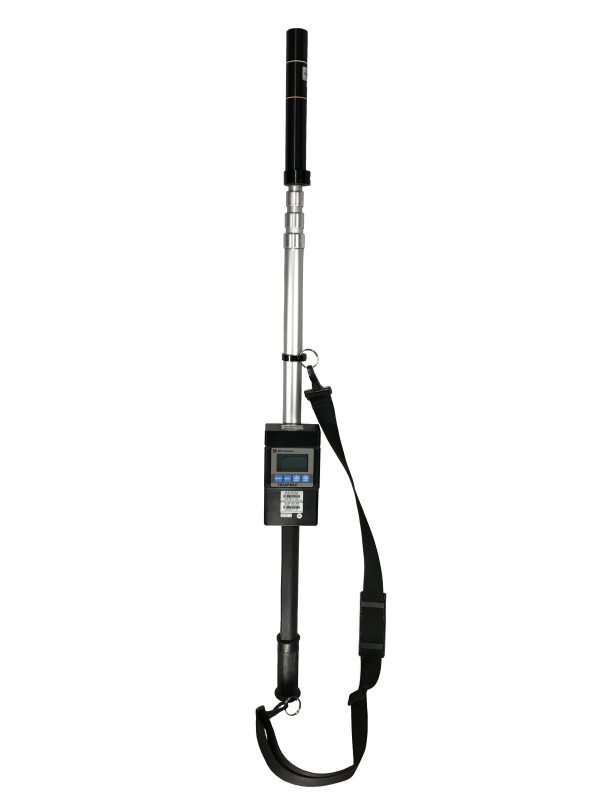

The TelepoleTD  is a training probe which connects to a real Mirion Telepole I telescoping gamma survey meter. The simulated probe is battery operated and provides automatic dose rate input to instrument using active “live” TWR Source(s) and manual dose rate input via SCC. Instrument retains all controls, alarms, and WRM2 telemetry capability. (Mirion Telepole I Telescoping Ratemeter available separately.)

Train Your Radworkers To:

  • Respond to dose rates based on distance to one or more TWR “Live” Sources
  • Understand 1/R2 principle
  • Hear audible click rate as radiation levels change
  • Operate all device controls
  • Observe dose rate scale changes
  • Observe realistic detector response
  • Recognize selected device faults and failures

Features:

  • Simulated probe connects to standard Mirion Telepole WR telescoping gamma survey meter
  • Automatic and manual simulated dose rate input to instrument
  • Realistic response to changes in dose rate
  • All controls and alarm conditions are functional
  • Works with WRM2 Telemetry
  • Simulates “Manual High Range” mode

Specifications:

  • Power – One (1) Internal rechargeable 2200mAh 3.7V Lithium-ion Polymer battery
  • Battery Life – >8 Hours
  • Environmental – Drop resistant
  • Wireless Communication – IEEE 802.15.4, IEEE 802.15.4-2011
  • Dimensions – 228.6 x 44.45 (9 x 1.75 in.)

Additional Features:

  • Direct connection to any Mirion Technologies Telescoping Gamma Survey Meter, Model Telepole I, via existing probe connection.
  • Operates independently with any SIM-Teq TWR Source, OR manually controlled by instructor via SCC.
  • Simulated Probe looks and responds like the real meter probe
  • Display Range up to saturation 0.05 mR/h – 999 R/h (0.0005 mSv/h – 9.99 Sv)
  • Response performance characterized from real instrument
  • All push buttons, LED light, multi-layered menu and display remain functional
  • Alarms: configured on connected instrument
  • Faults: E.LD, E.HD
